Surgeon-Approved Engineering
Advanced 2.4mm Distal Radius Volar Plating & Screw System
GPC Medical USA provides international distributors and hospitals with a comprehensive line of Distal Radius Volar Locking Implants designed specifically for anatomical fit, exceptional angular stability, and superior intra-articular fracture reduction. Our plates feature a uniquely low-profile contour engineered to sit distal to the watershed line while dramatically lowering flexor tendon irritation.
Manufactured under stringent ISO 13485 quality standards using certified implant-grade Titanium Alloy (Ti-6Al-4V ELI), the system provides orthopedic surgeons with complete intra-operative flexibility through Variable Angle (VA) locking holes, standard locking screws, cortical screws, and specialized ergonomic instrumentation.
ISO 13485 & CE Certified
Grade 5 Titanium Alloy (Ti-6Al-4V)
Variable Angle (VA) ±15° Cone
Precision Stardrive Recess
B2B Product Range
Distal Radius Implants & Instrument Sets
Browse our complete SKU inventory of anatomically contoured volar plates, column plates, locking screws, and autoclavable PPSU instrument trays available for global export.

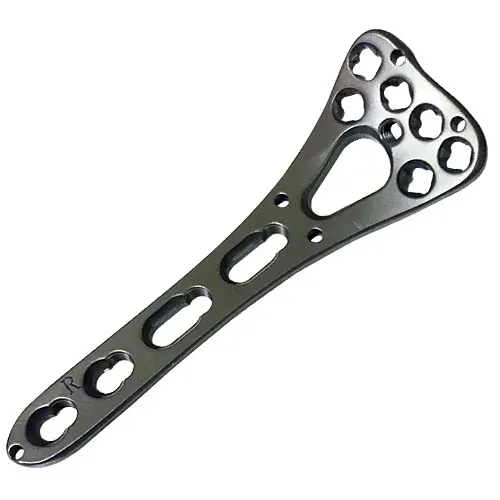

Model No.: 3001
2.4 mm Variable Angle 2-Column Distal Radius
Width: 22mm | 6 Head Holes | Left & Right Anatomical Options | Titanium Alloy
Model No.: 2683
fixLOCK Self Tapping Screw, 2.4 mm Stardrive
Diameter: 2.4mm | T8 Stardrive Drive Recess | Self-Tapping Flute | Threaded Locking Head
Model No.: 2704
Self Tapping Cortex Screw, 2.7 mm Stardrive
Diameter: 2.7mm | Non-Locking Cortical Fixation | High Torque Stardrive | Grade 5 Titanium
Model No.: 3002
2.4 mm Variable Angle 2-Column Distal Radius
Width: 25.5mm | 7 Head Holes | Broad Volar Head Coverage | Left/Right Pre-contoured
Model No.: 3003
2.4 mm Variable Angle 2-Column Distal Radius - Narrow
Width: 19.5mm | 6 Head Holes | Narrow Profile for Small Anatomy | Left & Right
Model No.: 3006
2.4 mm fixLOCK Distal Radius Volar Column
8 Head Holes | Radial & Ulnar Column Support | Anatomical Tapered Distal Edge
Model No.: 3013
2.4 mm fixLOCK Distal Radius Volar Plate
5 Head Holes | Standard Volar Profile | Left/Right Specific | Titanium Alloy
Model No.: 3007
2.4 mm fixLOCK Distal Radius Volar Column
9 Head Holes | Extended Distal Head Fixation | Multi-fragmentary Fracture Support
Model No.: 3009
2.4 mm fixLOCK Distal Radius Plate - Straight
Straight Shaft Alignment | Low Profile Border | Versatile Shaft Length Options
Model No.: 3008
2.4 mm fixLOCK Distal Radius T Plate
3 Head Holes | T-Plate Geometry | Ideal for Metaphyseal Osteotomies & Fractures
Model No.: 3012
2.4 mm fixLOCK Distal Radius Oblique L Plate
3 Head Holes | Oblique L-Contour | Left & Right Specific | Radial Styloid Support
Model No.: 3011
2.4 mm fixLOCK Distal Radius L Plate - II
3 Head Holes | Modified L-Design Type II | Optimized Angular Stability
Model No.: 3010
2.4 mm fixLOCK Distal Radius L Plate - I
2 Head Holes | Compact L-Design Type I | Minimalist Incision Fixation

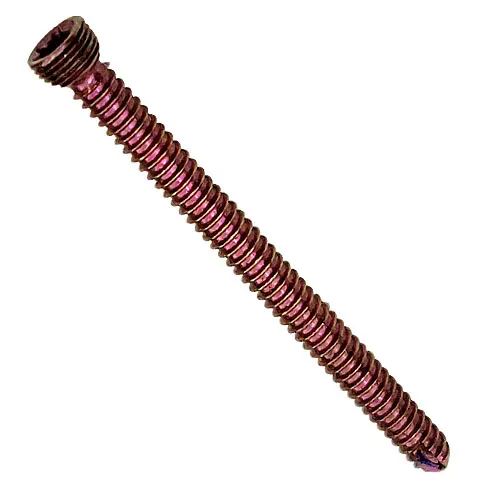

Model No.: 2683VA
Variable Angle Locking Screw 2.4 mm, Stardrive
Diameter: 2.4mm | Polyaxial Variable Angle Locking | T8 Stardrive | Precise Angulation

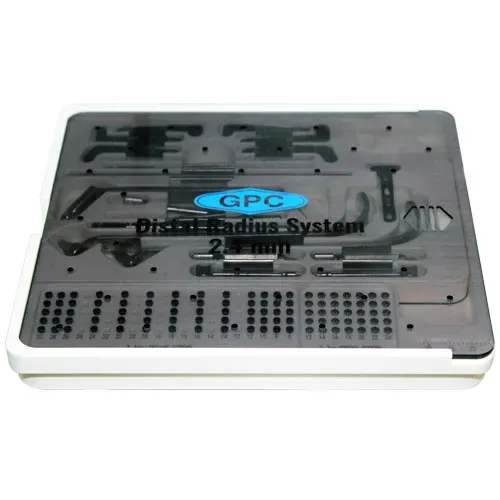

Model No.: 4001
2.4 mm Distal Radius Special Instrument Set
Complete Instrumentation | Autoclavable PPSU Tray Case | Soft Tissue Protectors, Drills & Drivers
Biomechanical Rigidity
Pre-shaped anatomical contours match natural volar inclination, ensuring anatomical reduction and minimal soft tissue irritation.
Comprehensive Inventory
Over 15 product configurations including left/right volar plates, L-plates, T-plates, and complete PPSU instrument cases.
Global Supply Chain
Direct export from our Dallas, TX warehouse with fast lead times, OEM/ODM private labeling, and regional distributor protection.
