Dual-thread shaft for fast insertion & dual core diameter maximizing pull-out strength.
Medical Grade Spine System

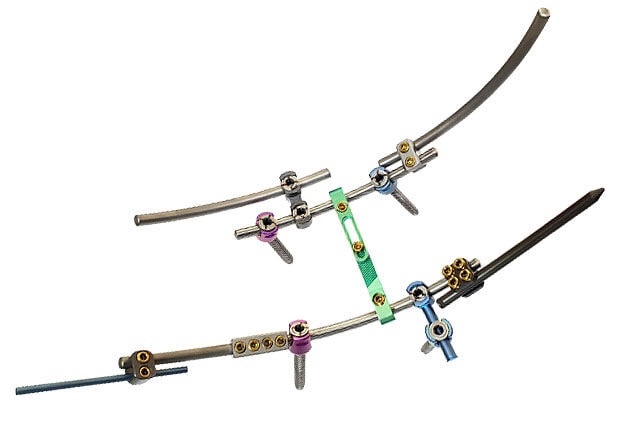

spineHEAL — Posterior Pedicle Screw System
The spineHEAL® Pedicle Screw System by GPC Medical USA is a comprehensive posterior non-cervical spinal fixation system engineered to deliver precise segmental stabilization of the thoracic, lumbar, and sacral spine in skeletally mature patients.
Crafted from biocompatible titanium alloy (Ti-6Al-4V ELI), the system includes an optimized selection of monoaxial screws, polyaxial screws, reduction screws, pre-cut titanium rods, cross connectors, and specialized locking caps to address complex spinal pathologies.
Clinical Indications
Engineering Innovation
Key Biomechanical & Design Features
Developed in collaboration with leading orthopedic spine surgeons to reduce operative time and enhance pull-out resistance.
Top-loading low profile design for controlled and intuitive in situ pedicle screw seating.
Multi-directional polyaxial head allowing up to 50° angulation for versatile rod capture.
Standardized Torx/Star drive mechanism ensuring slip-free torque transmission.
Rigid locking cap interface establishing superior long-term screw-rod construct stability.
System Portfolio
Implants & System Components
Explore full specifications of GPC spineHEAL system implants manufactured under strict ISO quality control standards.
Monoaxial Pedicle Screws
Polyaxial Pedicle Screws
Cross Connectors
Spinal Titanium Rods
Polyaxial Reduction Screws
Monoaxial Reduction Screws
Pedicle Screw Caps
spineHEAL Instrument Set
Surgical Precision

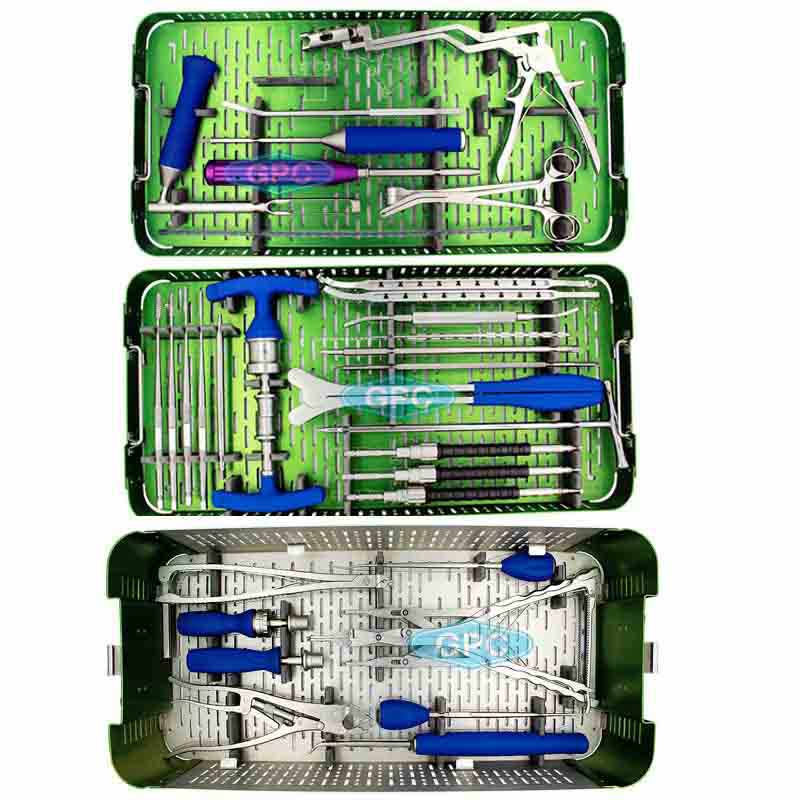

spineHEAL® Surgical Instrument Set (Model GOS1490)
The spineHEAL Surgical Instrumentation Set is engineered to streamline operative procedure steps, offering ergonomic handles, high-durability reamers, pedicle probes, rod benders, and torque-limiting drivers packed in modular, autoclave-ready sterilization trays.
Ergonomic, non-reflective surgical stainless steel instruments
Color-coded taps & probes for instant intraoperative identification
Precision torque-limiting set screw drivers to prevent over-tightening
Three-tier anodized aluminum sterilization containers with clear silicone holders
Technical Compliance
Manufacturing Standards & Technical Specs
GPC Medical USA enforces stringent international medical quality controls for global regulatory compliance.
| Raw Material Standard | Biocompatible Titanium Alloy Ti-6Al-4V ELI (ISO 5832-3 / ASTM F136) |
|---|---|
| Quality System Certifications | ISO 13485:2016 Certified Quality Management System |
| Screw Diameters Available | 4.5mm, 5.5mm, 6.5mm, 7.5mm (Lengths ranging from 25mm to 55mm) |
| Rod Diameter Compatibility | Ø 5.5 mm Titanium Alloy Rods (Straight & Pre-curved options) |
| Sterilization | Supplied Non-Sterile (Autoclave Sterilization Required) / Sterile Packaging Available upon Request |
| Target Buyers & Supply | Hospitals, Surgery Centers, Wholesale Medical Device Distributors Worldwide |
Partner with GPC Medical USA for Premium Spine Implants
Gain competitive factory pricing, dependable North American logistics, full regulatory technical documentation, and dedicated distributor support.
